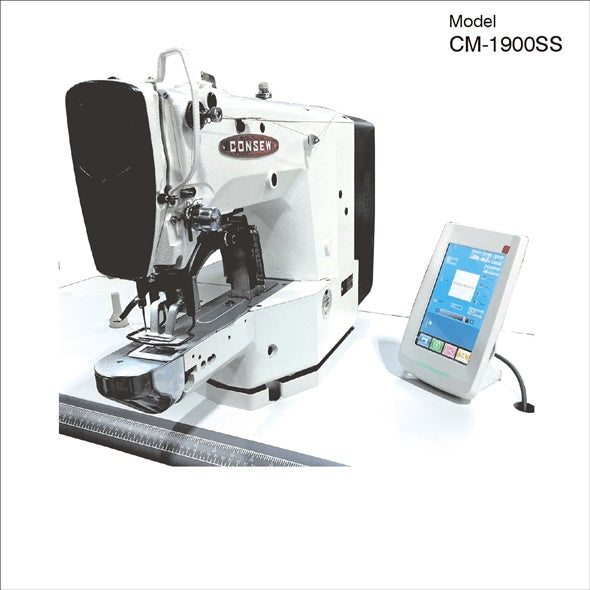

Consew CM-1900SS

Name: Consew CM-1900SS
Brand: My Store
SKU: CM-1900SS
Availability: InStock

SKU: CM-1900SS

Overview

Fully Automatic, Direct Drive, Computer Controlled, Single Needle, Bartacking Machine

With: Programmable sewing patterns; Large internal pattern storage; USB port for additional pattern storage; LED needle light

Model CM-1900SS: for standard material
With: 30mm x 40mm sew field; 100 Preset sewing patterns; Sewing Area: 30mm (W) × 40mm (L)

Download Manual Download Parts Book Download Catalog Page

Applications

Large sewing area allows sewing complex sewing patterns such as lengthwise bartacking. Large memory capacity allows storage of many different scale ratios, numbers of stitches and numbers of sewing patterns. USB port provided.
Designed for stitching such products as auto, boat and furniture upholstery, tarpaulins, covers, awnings, tents, handbags, luggage, sports and camping equipment, outdoor clothing, footwear, orthopedic appliances, ballistic armor, parachute containers, etc.

Features

Direct Drive Motor: No belt connection required
Pattern Adjustment: Stitch data can be changed using the pattern enlargement/reduction function by entering the scale ratio through the operating screen

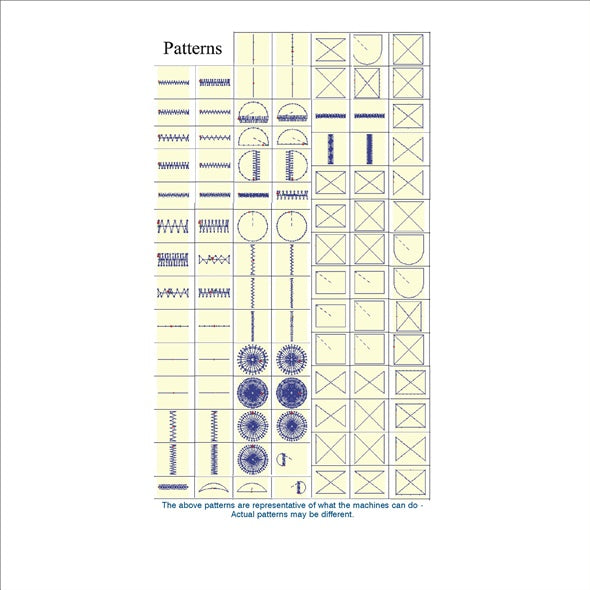

Pre-Programmed Stitch Patterns:
USB Port: Enables easy storage and access to saved patterns
CM-1900HS-XL Feature: Roll-in-tuck function tucks top thread underneath when starting
Attachments: Standard attachments can be easily installed
Lubrication: Semi-dry head lubrication (Hook: minute-quantity lubrication)
Needle Bar Coating: Diamond-Like Carbon (DLC) coating with advanced needle cooling system
Active Tension (AT): Electronically controlled digital tension
Power Supply: Only available in 220V 1 phase (110V transformers sold separately)

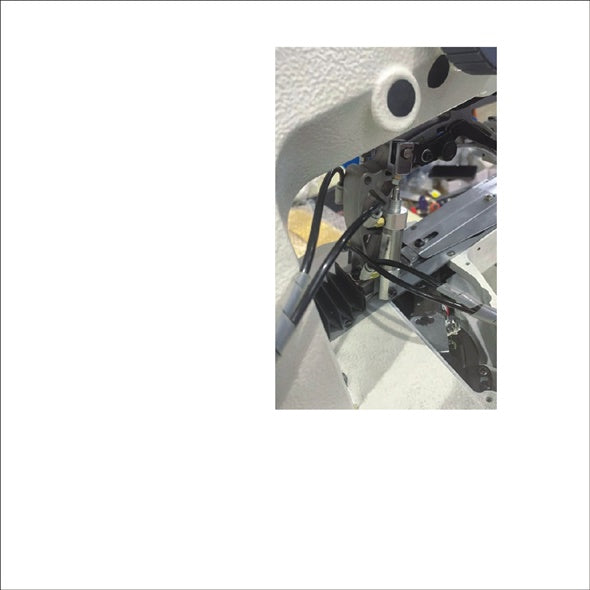

Optional Feature: Air presser foot (clamp) lifter (requires compressed air)

Specifications

Number of Needles: 1 (Single)

Workspace: Standard Workspace

Standard or Full Function: [Not specified]

Stitch Type: [Not specified]

Speed (Max S.P.M.): 3000

Max Stitch Length: 0.1 ~ 12.7mm

Needle Bar Stroke: [Not specified]

Needle Used: DPX17 (standard), DPX5 (optional)

Number of Stitches: [Not specified]

Looper: B-372-213

Clearance Under Foot: 33/64" (13mm), 17mm with reverse-rotation needle-up function

Power: 220V (110V converter available as an option)
