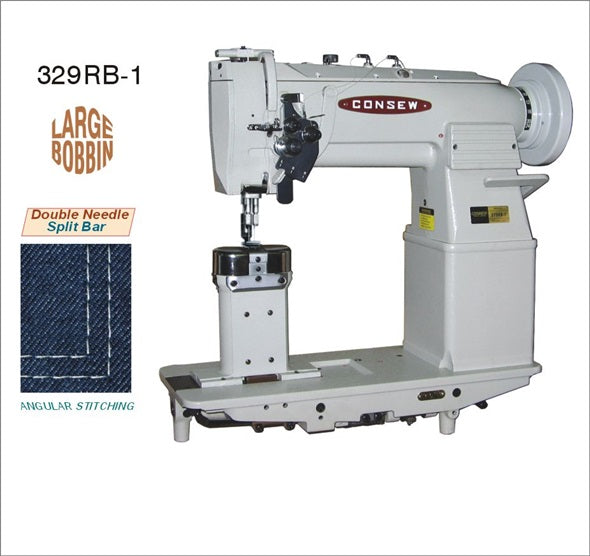

Consew Model 329RB-1

329RB-1
Consew Model 329RB-1

Overview

Heavy Duty, High Speed, Post Type, Two Needle, Angular Stitching (split Needle Bar), Drop Feed, Needle Feed, Lockstitch Machine

With: Centra-Lube® Semi-automatic Lubrication System, Large Vertical Axis Rotary Hooks And Bobbins, Disengageable Right And Left Needle Bars, Reverse Feed, Safety Clutch, Split Bar

Applications

  • For sewing medium to medium heavy-weight fabrics, leather, canvas, vinyl, synthetics and various coated and laminated materials
  • Designed for sewing operations which require decorative or functional angular stitching such as collars, pockets, shoe uppers, auto, boat and furniture upholstery, slacks, shirts, etc.
  • General / parallel two-needle stitching, for top stitching and reinforcement.
  • Suitable for stitching uneven, hollow, tubular and curved articles
  • Also for secondary operations on finished articles such as attaching braids, pockets, tapes, etc.

Features

  • Centra-Lube® semi-automatic lubrication system
  • Oil fed take-up
  • One-touch lever easily disengages right and left needle bars
  • Stitches per minute - 2400
  • Large vertical axis rotary hooks and bobbins
  • Reverse stitching
  • Safety clutch prevents the hooks from being damaged
  • Compound feed mechanism assures even feeding of material

Specifications

Number of Needles 2 (Double)
Feeding Mechanism Needle Feed
Workspace Standard Workspace
Standard or Full Function Standard Functions
Speed, Max (S.P.M.) 2400
Clearance Under Presser Foot 11/32" (8.5mm)
Stitch Length 5 s.p.i. (5mm)
Work Space 2 1/8" x 2" (54mm x 50mm)
Needle 135 x 17
Bobbin Metal 16408 Pre-wound U
Bed Size 7" x 20 3/8" (177mm x 518mm)
Stitch Type 301
Needle Bar Stroke 1 1/4" (32mm)
Hook 14005
Post Height 7" (178mm)
Needle Gauges Available 1/8" - 3/4" (3.2mm-19mm)
