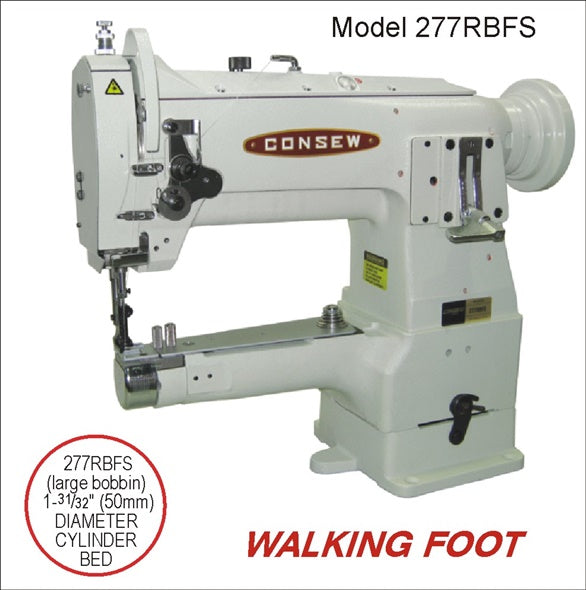

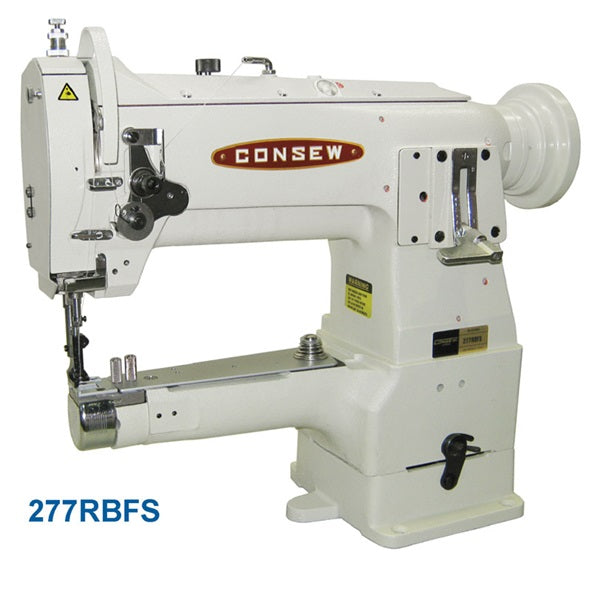

Consew Model 277RBFS


Heavy Duty, Narrow Cylinder Arm, Single Needle, Drop Feed, Needle Feed, (Compound Feed,) Alternating Presser Feet, Lockstitch Machines.

with Centra-lube® Semi-automatic Lubrication System, Horizontal Axis Rotary Hook, Reverse Feed.

Model 277RBFS (large bobbin) is equipped for feed synchronized binder with horizontal feed and has a cylinder bed diameter of 1-31/32" (50mm)



  • For sewing light to heavy-weight fabrics, leather, vinyl, upholstery, synthetics, canvas and various coated and laminated materials.
  • Especially designed for products with narrow openings.
  • For stitching tubular and curved work.
  • Suitable for sewing such products as hats, caps, shoes, sandals, slippers, tarpaulins, covers, sails, tents, awnings, umbrellas, bags, luggage, handbags, travelware accessories, wearing apparel, etc.
  • Models 277RFS-3 & 277RBFS are especially made for Tape Binding


  • Narrow cylinder arm — 1-31/32" (50 mm) diameter (Model 277RBFS)
  • Horizontal axis rotary hook
  • Large bobbin available (Model 277RBFS)
  • Compound feed, walking foot mechanism assures even feeding of several plies or slippery material
  • Simple adjustment permits the raising and lowering of center foot which allows for sewing of different thicknesses of materials



Number of Needles 1 (Single)
Feeding Mechanism Walking Foot
Workspace Standard Workspace
Standard or Full Function Standard Functions
Speed, Max (S.P.M.) 2200
Stitch Length 4 s.p.i. (6.5mm)
Work Space 10 5/32" x 4 11/32" (258 x 110mm)
Needle 135 x 17
Bobbin 18034 M
Weight 179 lbs (81kg)
Needle Bar Stroke 1 5/16" (33.2mm)
Cylinder Diameter 1-31/32" Dia. (50mm)
