Consew Model 199R-2A-1

199R-2A-1
Consew Model 199R-2A-1

Overview

Single Needle, Drop Feed, Zig-Zag, Lockstitch Machine

With: Horizontal Axis Transverse Rotary Hook, Reverse Feed, Combination Zig-Zag and Straight Stitcher

 Applications

  • Three step/two stitch zig-zag Federal stitch 308
  • For sewing elastic and other stretch materials, as well as for ornamental stitching
  • For stitching such products as boat and truck covers, tents, awnings sails, parachutes, tarapaulins, canvas bags, also many items of military and naval equipment
  • Used on such materials as canvas, nylon, vinyl, leather, synthetics and similar materials
  • Especially desierable where reinforced stitch is necessary
  • Also available with special fittings for rope tacking operations
  • Used for rope tacking, making loops in rope and attaching small and medium size ropes to such products as truck covers, tents, sails, hammocks, parachutes, grain bags and many items of military and naval equipment

Features

  • Horizontal axis transverse rotary hook
  • Maximum width of zig-zag: 3/8" (9.5mm)
  • Straight stitcher when zig-zag is set to 'O' mm
  • Long arm with 10" free space between needle and arm (all 18 7/8" bed models)
  • Locking zig-zag width regulator
  • Reverse stitching
  • Special fittings available for rope end and rope loop stitching

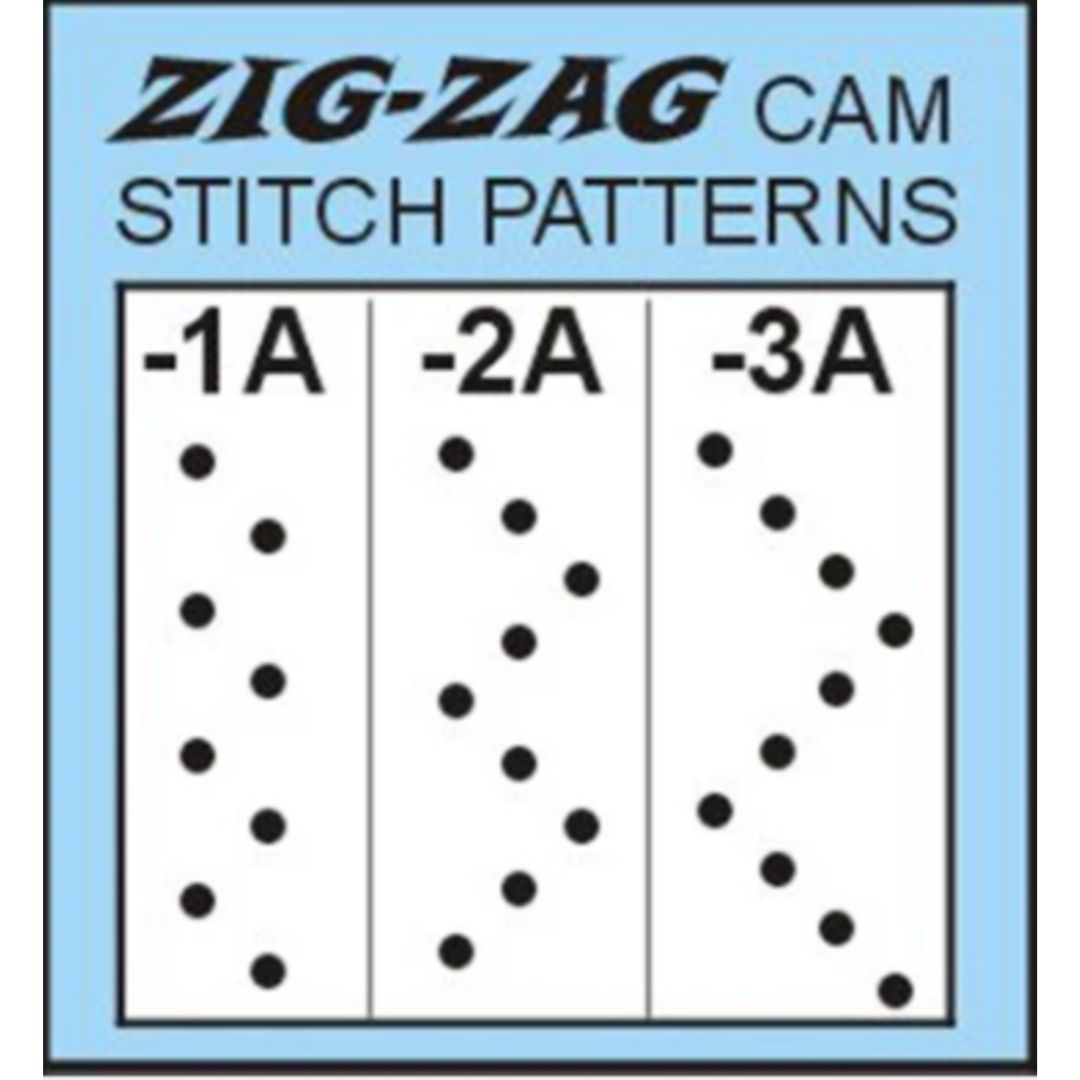

  • Optional: Interchangable between 1A, 2A & 3A stitches; Additional parts required (not included)

ADDITIONAL INFORMATION



Specifications

Number of Needles 1 (Single)
Feeding Mechanism Needle Feed
Workspace Standard Workspace
Standard or Full Function Standard Functions
Speed, Max (S.P.M.) Zig-Zag 2700
Straight 3000
Clearance Under Presser Foot 15/64" (6mm)
Stitch Length 5 s.p.i. (5mm)
Work Space 10" (258mm)
Needle 16 x 95
Bobbin Metal B75
Pre-wound L
Bed Size 7 x 18 7/8" (178mm x 480mm)
Needle Bar Stroke 1 11/32" (34mm)
Hook B-70
Zig-Zag Stitch Width 3/8" (9.5mm)
