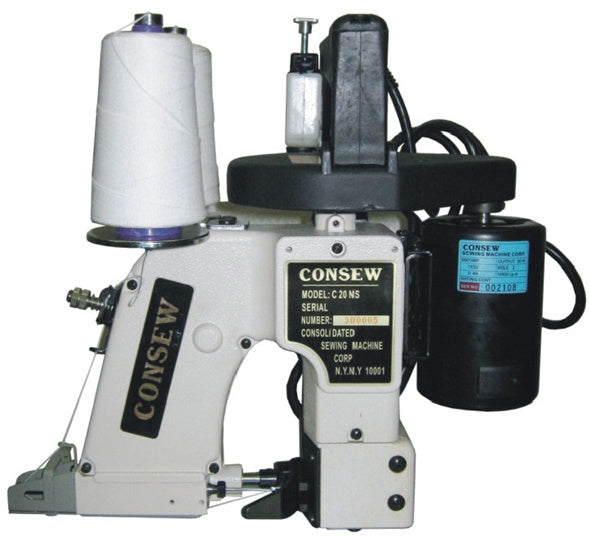

Consew Model C20NS / CN27A

C20NS / CN27A

Overview

Two Thread Bag Closer with Oil Lubrication System

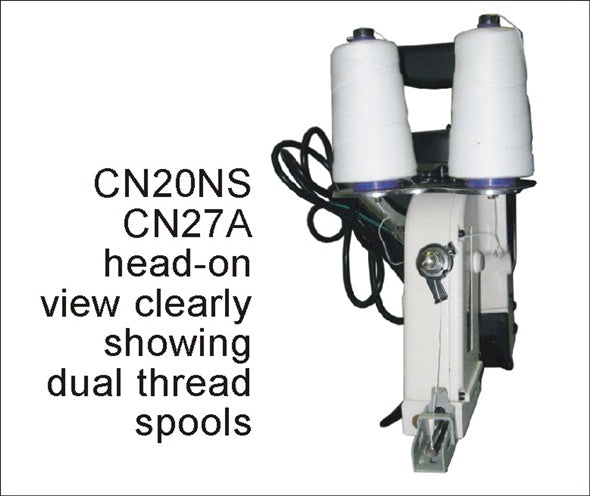

C20NS is "Fishbeine" style machine

CN27A is "Newlong" style machine



Applications

• Designed to close bags made of such materials as jute, cotton, linen, paper, burlap, plastic and waterproofed materials
• Suitable for plain and folded top closures
• Used by packers of flour, grain, fertilizer, feed, chemicals, seed, coffee, sugar, salt, grocery staples, minerals and other products

Features

• Two Needles, Two Threads
• Totally enclosed and sealed motor
• Portable           • Trigger-type switch
• Uses standard needles        • Uses popular type thread cones
• Protected cutting blades sever the thread after the bag is closed
• Easily adapted for stationary or suspended use without loss of portable features
• Starts sewing any thickness without raising presser foot

220 volt versions:
Model C20NS/220 is for 220 volts.
Model CN27A/220 is for 220 volts.

ADDITIONAL INFORMATION

Specifications

Number of Needles 2 (Double)
Feeding Mechanism Drop Feed
Workspace Standard Workspace
Standard or Full Function Standard Functions
Stitch Type 101
Speed, Max (S.P.M.) 1500
Max Stitch Length 9/32" (7.2mm)
Needle Used D-5
Looper A-300
Weight 12lbs. (5.4kg)
Motor 110 VAC
