Consew Model 7360RH-R

7360RH-R

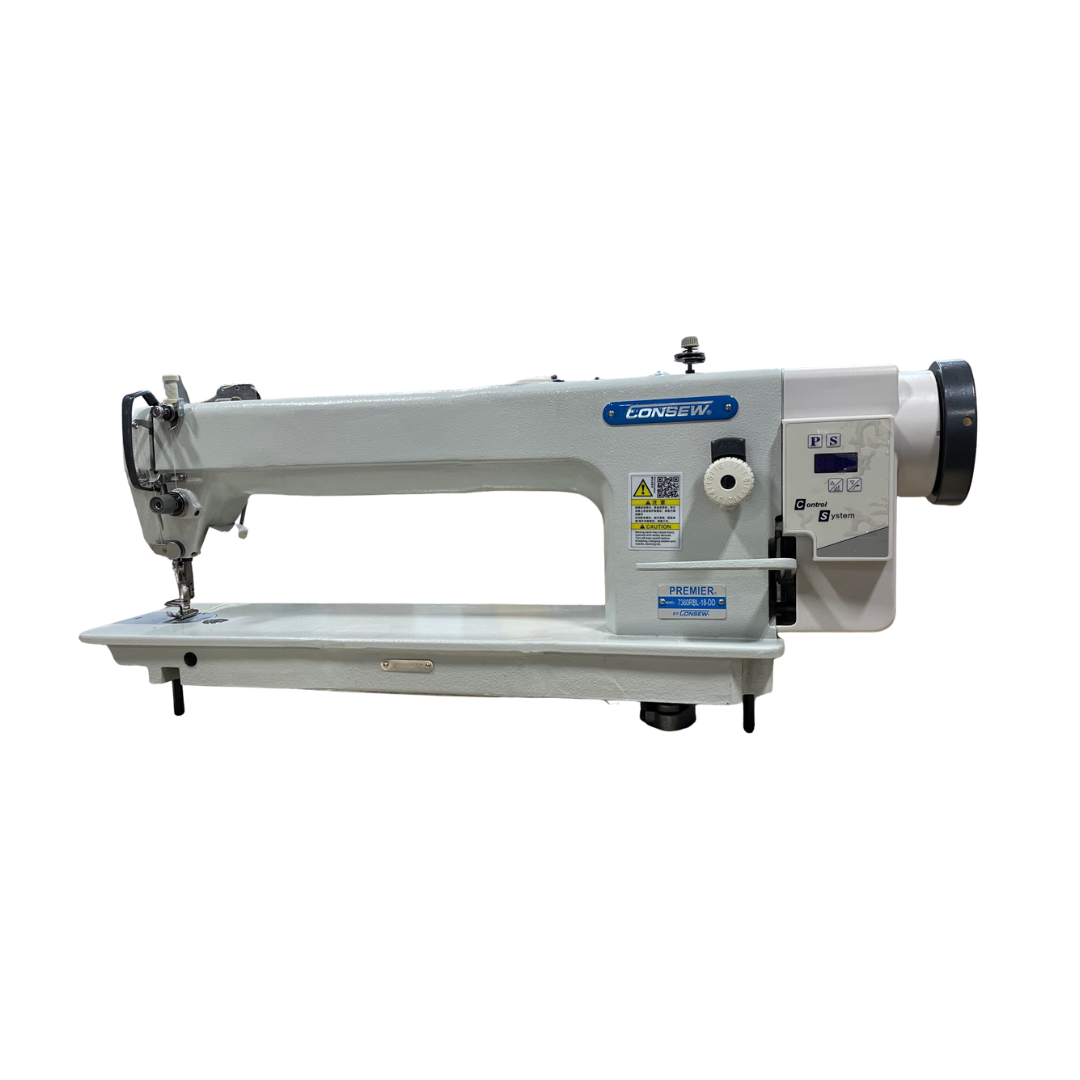

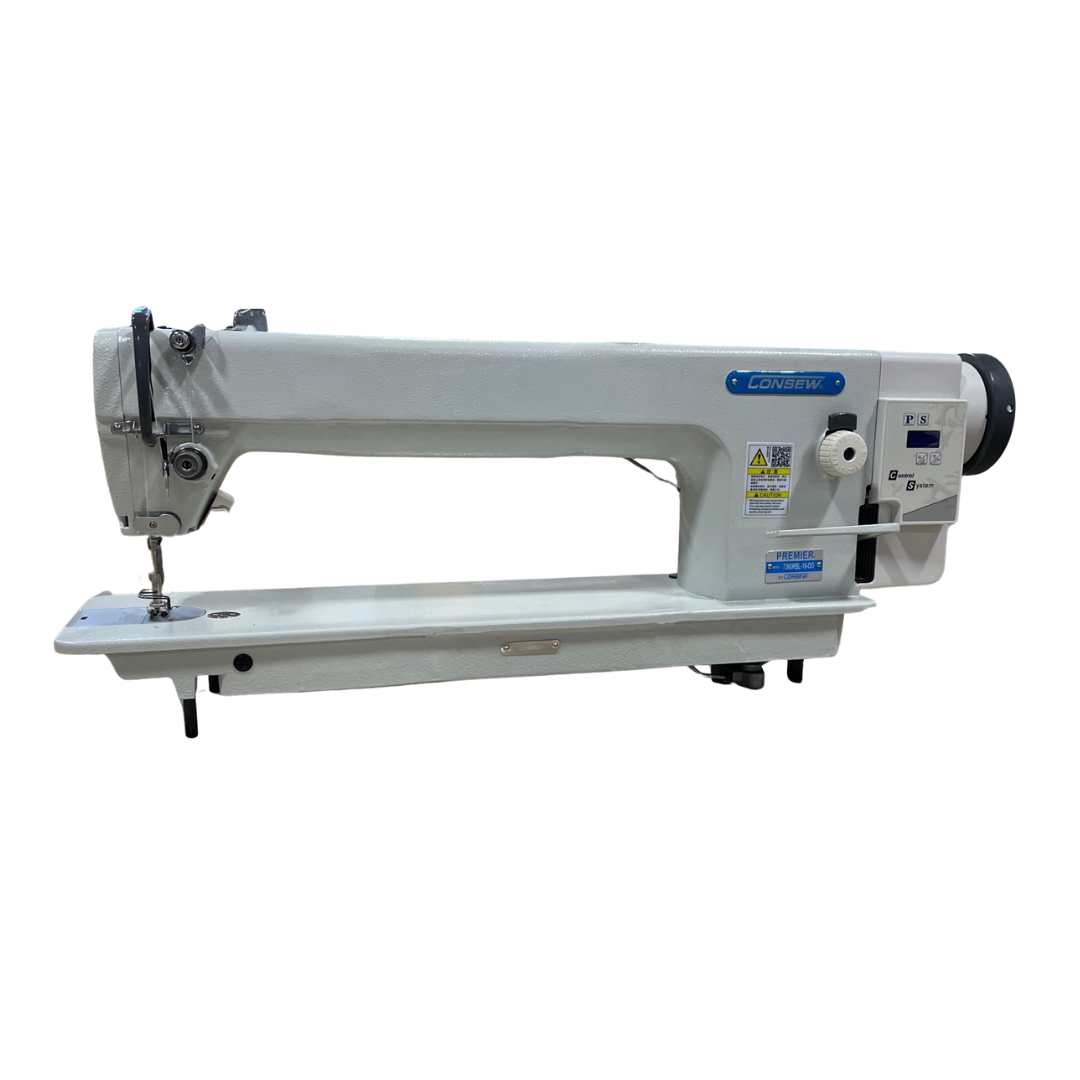

Consew Model 7360RH-R

Overview

Ultra High Speed, Single Needle, Drop Feed, Lockstitch Machine

With: Automatic Lubrication, Reverse Feed, Japanese Components

Applications

  • For sewing light to heavy-weight materials including cottons, knits, polyester, nylon, sheer fabrics and denim
  • Suitable for stitching such products as blouses, shirts, men's, ladies and children's apparel, uniforms, overalls, lingerie, etc.
  • Heavyweight fabrics such as jeans can be sewn by changing the needle plate, feed dog, foot, stitch regulator, hook and needle bar

Features

  • Fully automatic lubrication with recirculating high pressure pump
  • Noise and vibration absorbing table mounting
  • "Feather-touch" pressure foot lifter
  • Ultra high speed – 5500 S.P.M.*
  • Heavy Bobbin
  • Available with roller presser foot

Specifications

Number of Needles 1 (Single)
Feeding Mechanism Drop Feed
Workspace Standard Workspace
Standard or Full Function Standard Functions
Speed, Max (S.P.M.) 3500
Speed, Max (S.P.M.) 3000
Clearence Under Presser Foot 1/4" (6mm)
Clearence Under Presser Foot 1/4" (6mm)
Stitch Length 3 1/2 s.p.i. (7mm)
Stitch Length 5 s.p.i. (5mm)
Work Space 10" (258mm)
Work Space 10" (258mm)
Needle 16 x 257
Needle 135 x 5
Bobbin Metal 22T4-017
Pre-wound L
Bobbin Metal 78T4-005
Pre-wound M
Bed Size 7" x 18 7/8" (177mm x 477mm)
Bed Size 7" x 18 7/8" (177mm x 477mm)
Stitch Type 301
Stitch Type 301
Needle Bar Stroke 1 5/16" (33mm)
Needle Bar Stroke 1 1/4" (31.8mm)
Hook 48T4-001A
Hook 22T4-011D
