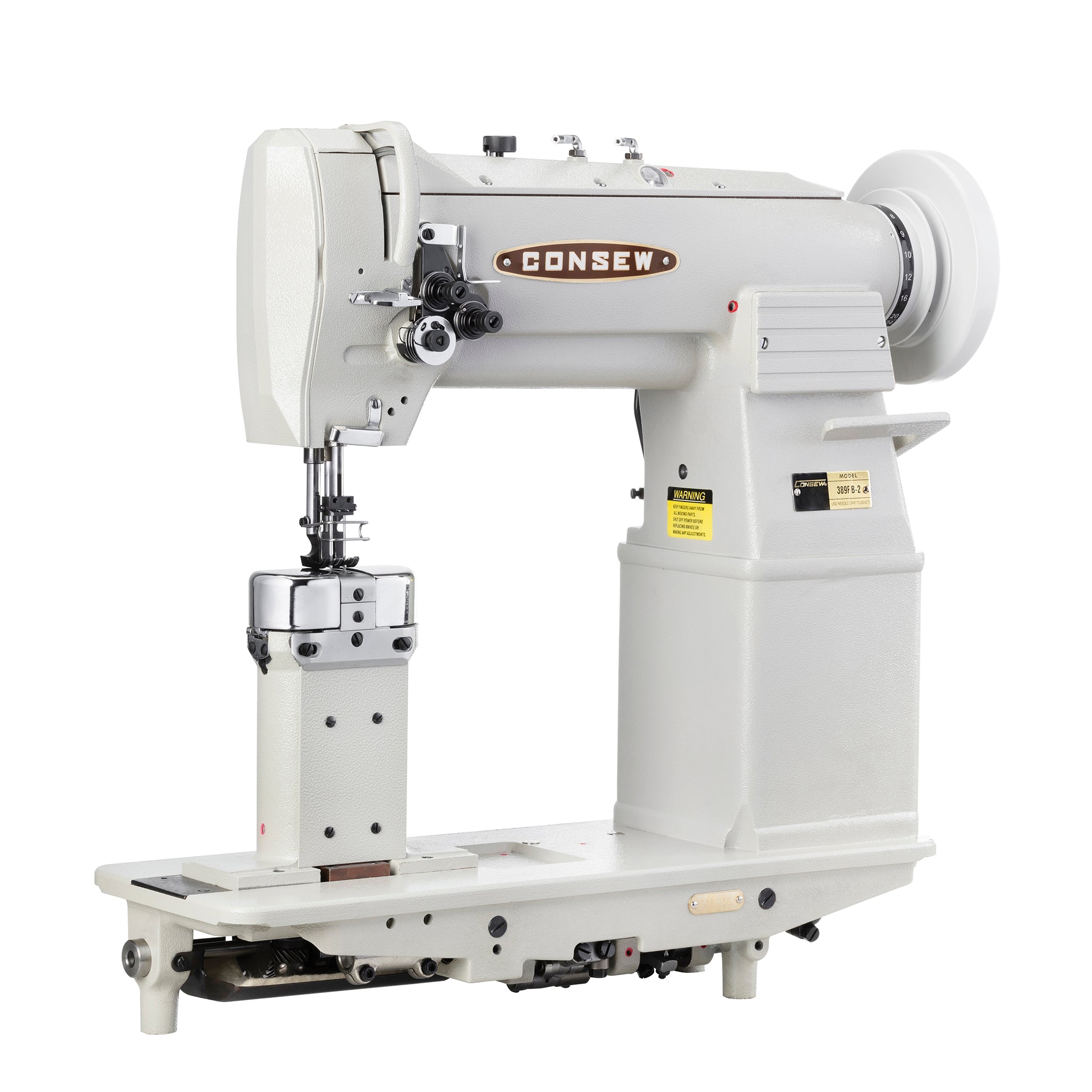

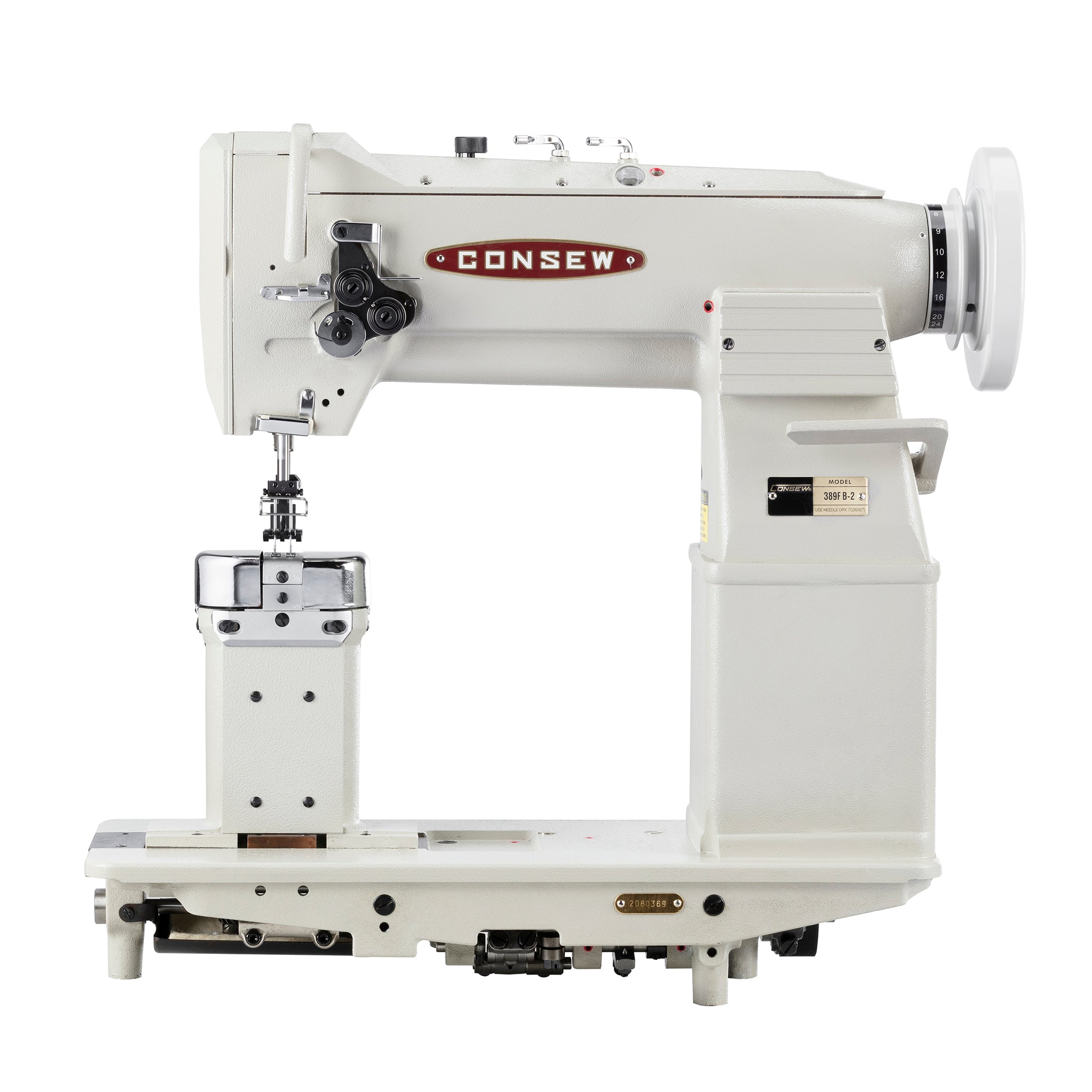

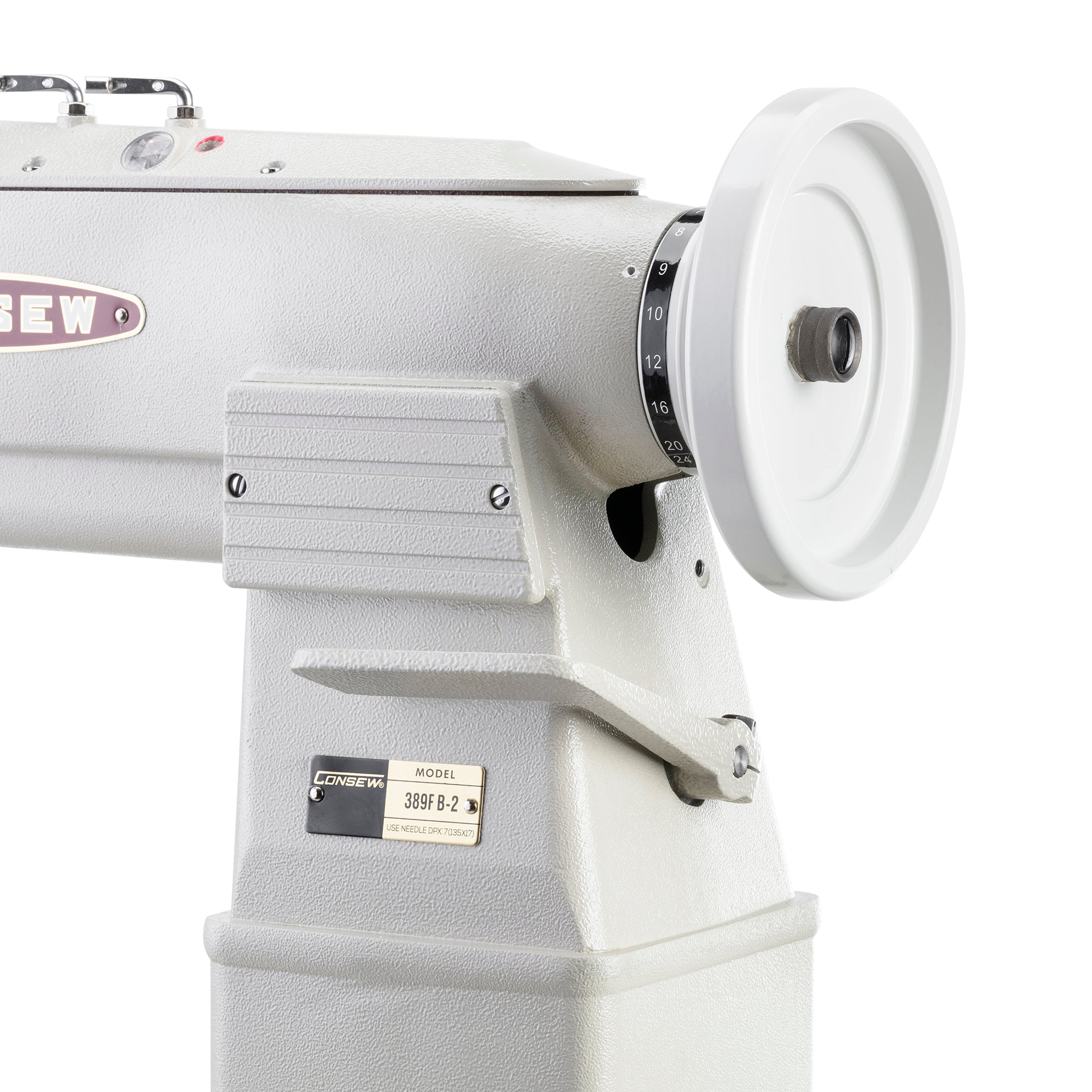

Consew Model 389RB-2

389RB-2

Overview

HEAVY DUTY, HIGH SPEED, POST TYPE, TWO NEEDLE, DROP FEED,NEEDLE FEED, WALKING FOOT, ALTERNATING PRESSER FEET LOCKSTITCH MACHINE

With: CENTRA-LUBE® SEMI-AUTOMATIC LUBRICATION  SYSTEM,  LARGE VERTICAL AXIS ROTARY HOOKS AND BOBBINS, REVERSE FEED, AND SAFETY CLUTCH





Applications

  • For sewing medium to medium heavy-weight fabrics, leather, canvas, vinyl synthetics and various coated and laminated materials
  • Designed for stitching such products as overalls, raincoats, luggage, travelware, accessories, bags, umbrellas, awnings, covers, tarpaulins, tents, wearing apparel, outdoor clothing, underwear, etc.
  • General/parallel two-needle stitching
  • Suitable for stitching uneven, hollow, tubular and curved articles
  • Also for secondary operations on finished articles such as attaching braids, pockets, tapes, etc.

Features

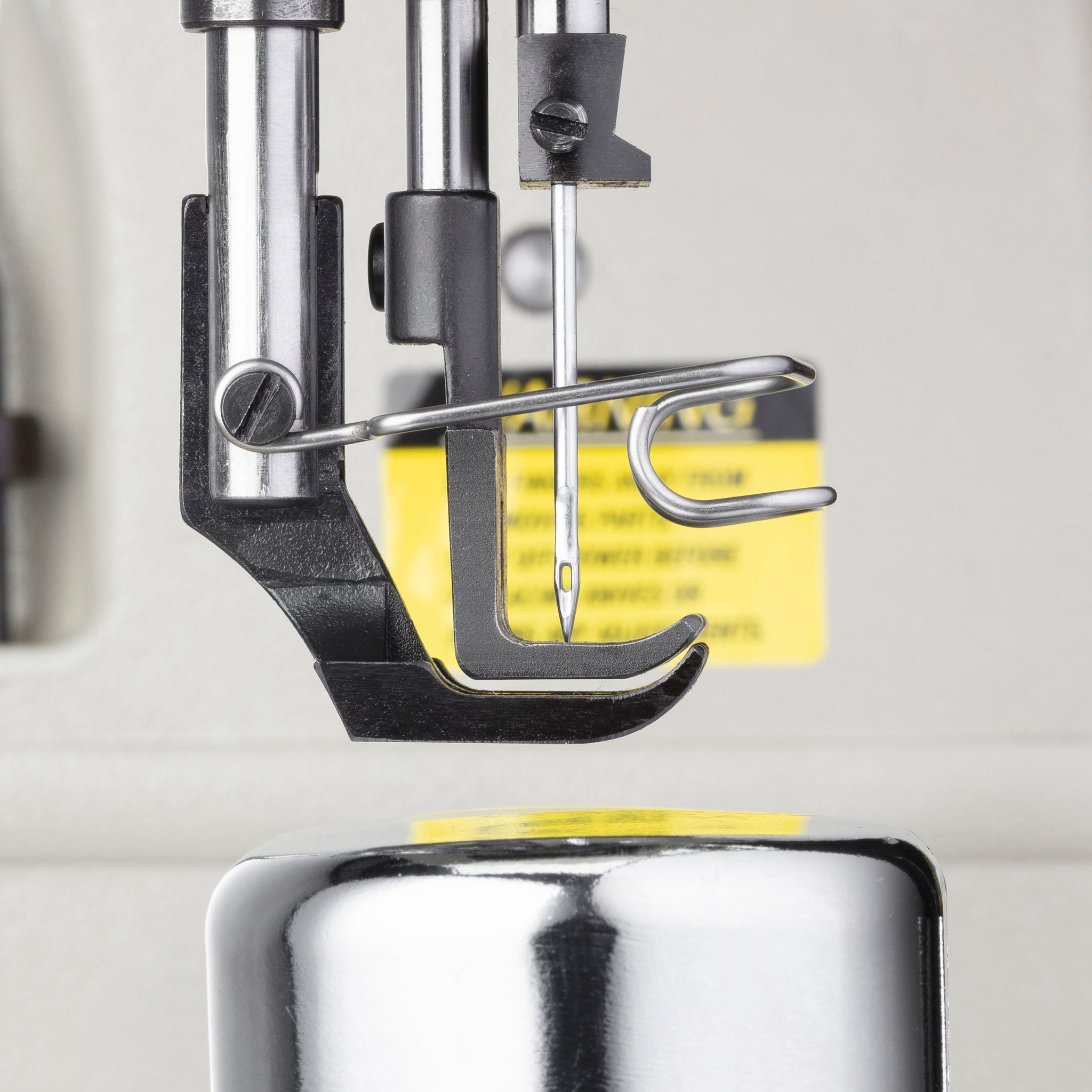

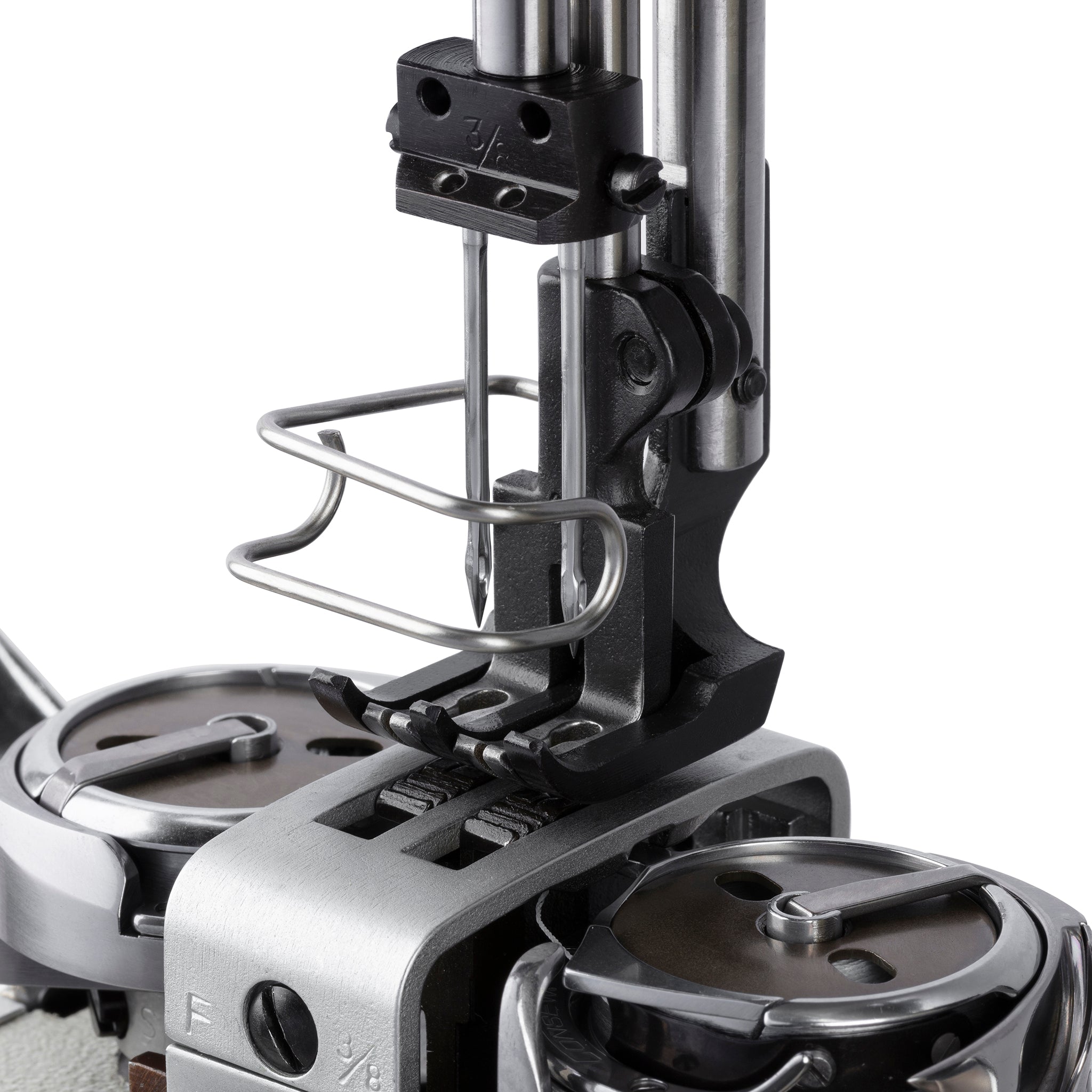

  • Compound feed, walking foot mechanism assures perfect feeding of sewing material

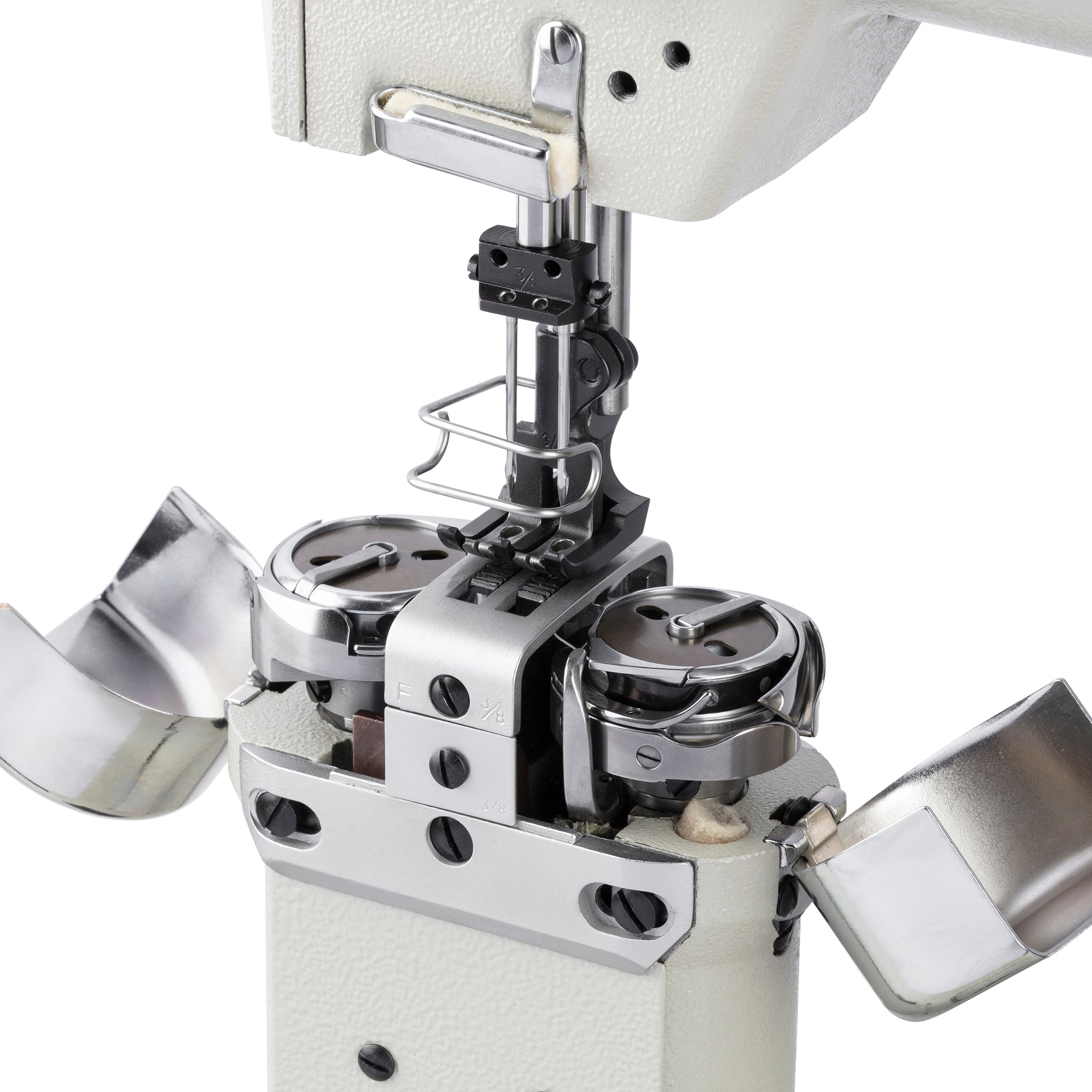

  • Large hooks and bobbin cases
  • Centra-Lube® semi-automatic lubrication system
  • Stitches per minute- 2400 *
  • Reverse stitching
  • Various gauge sets available
  • Safety clutch protects the hooks from being damaged
  • Model 389RBATCL(N) available with automatic functions
  • Available in extra high post bed (special order)

Specifications

Number of Needles 2 (Double)
Feeding Mechanism Walking Foot
Workspace Standard Workspace
Standard or Full Function Standard Functions
Speed, Max (S.P.M.) 2400
Clearence Under Presser Foot 7/16" (11mm)
Stitch Length 4.2 s.p.i. (6mm)
Bed Size 7"x20 3/8" (177mmx518mm)
Stitch Type 301
Hook 14505
Post Height 7" (178mm)
Work Surface 2 1/8"x4" (54mmx101mm)
