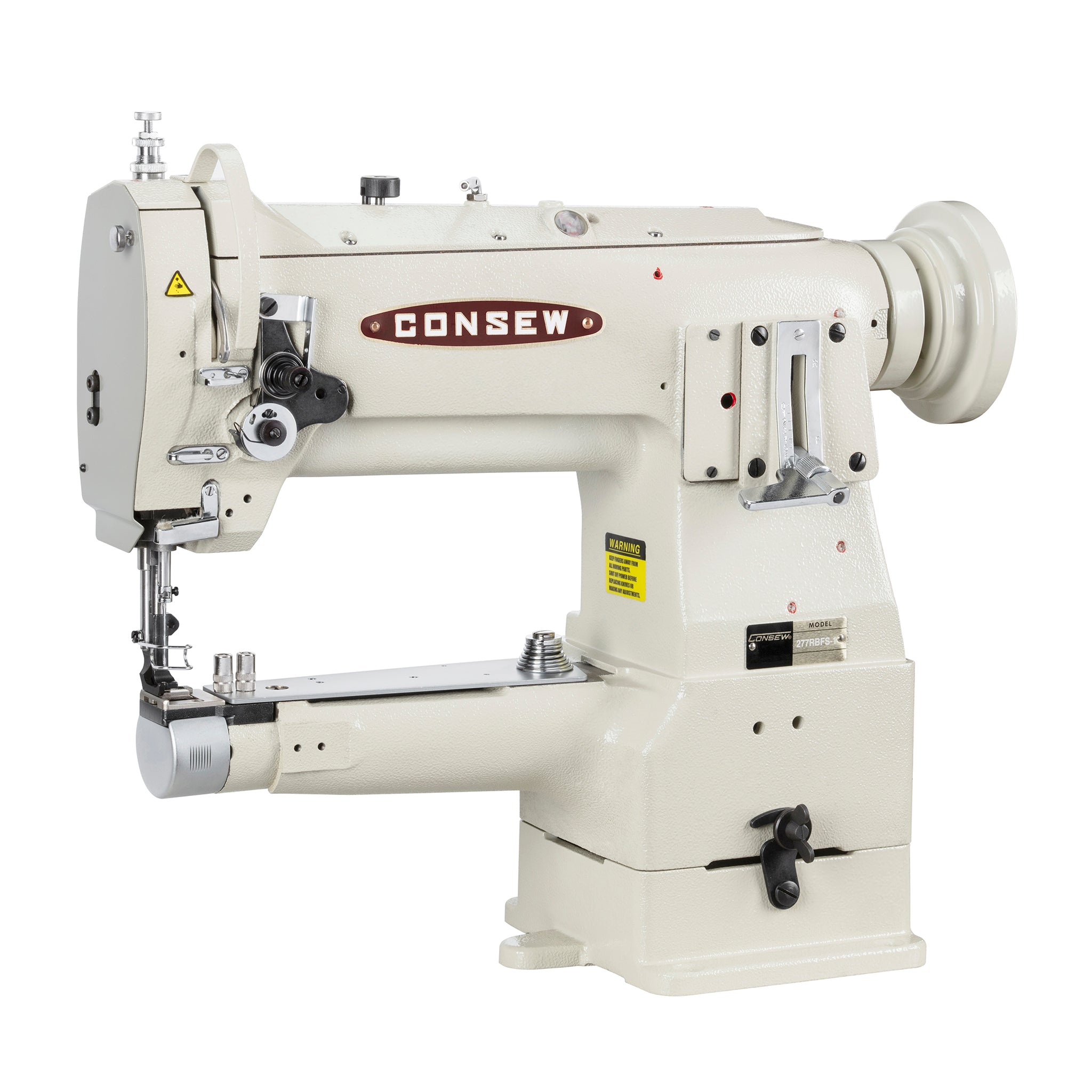

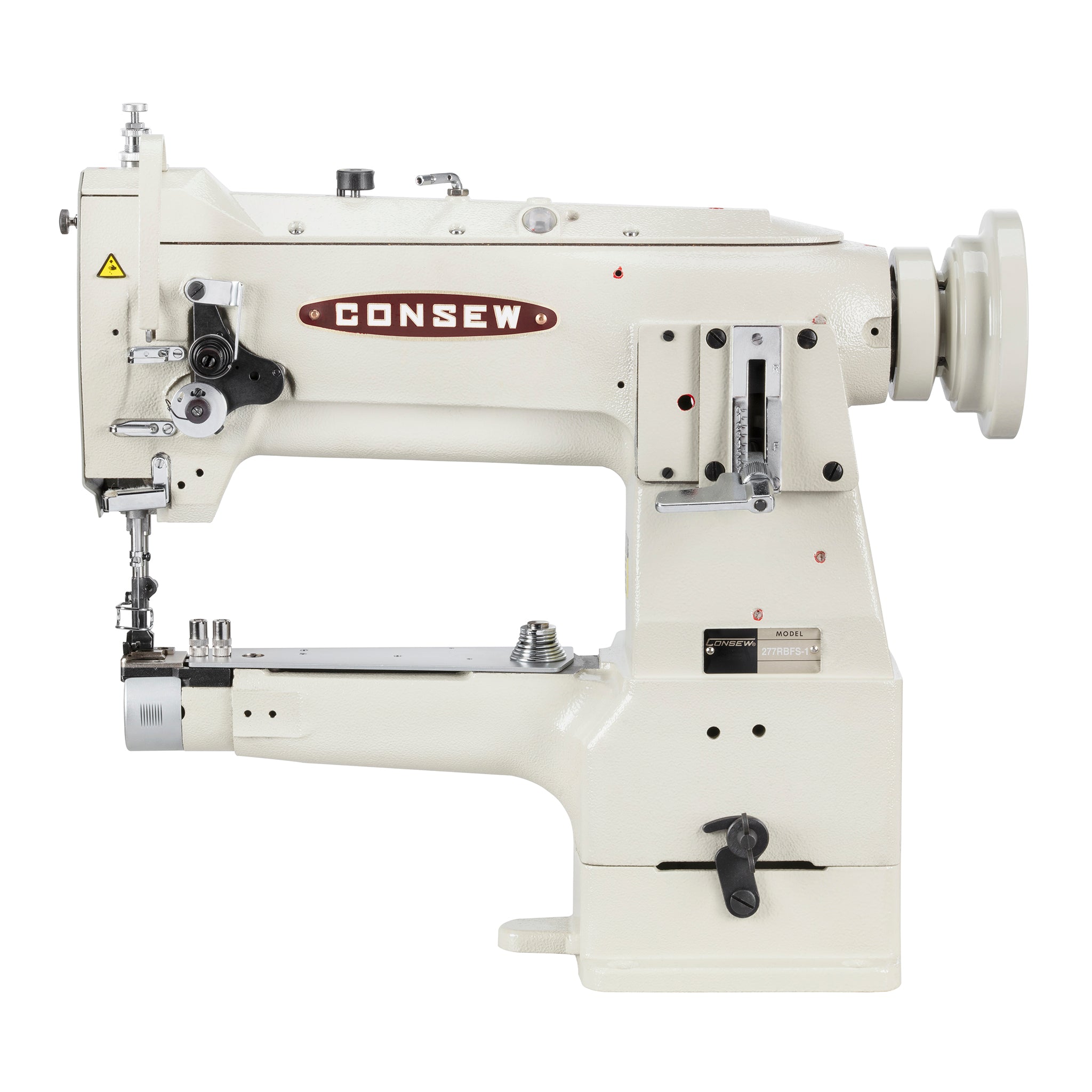

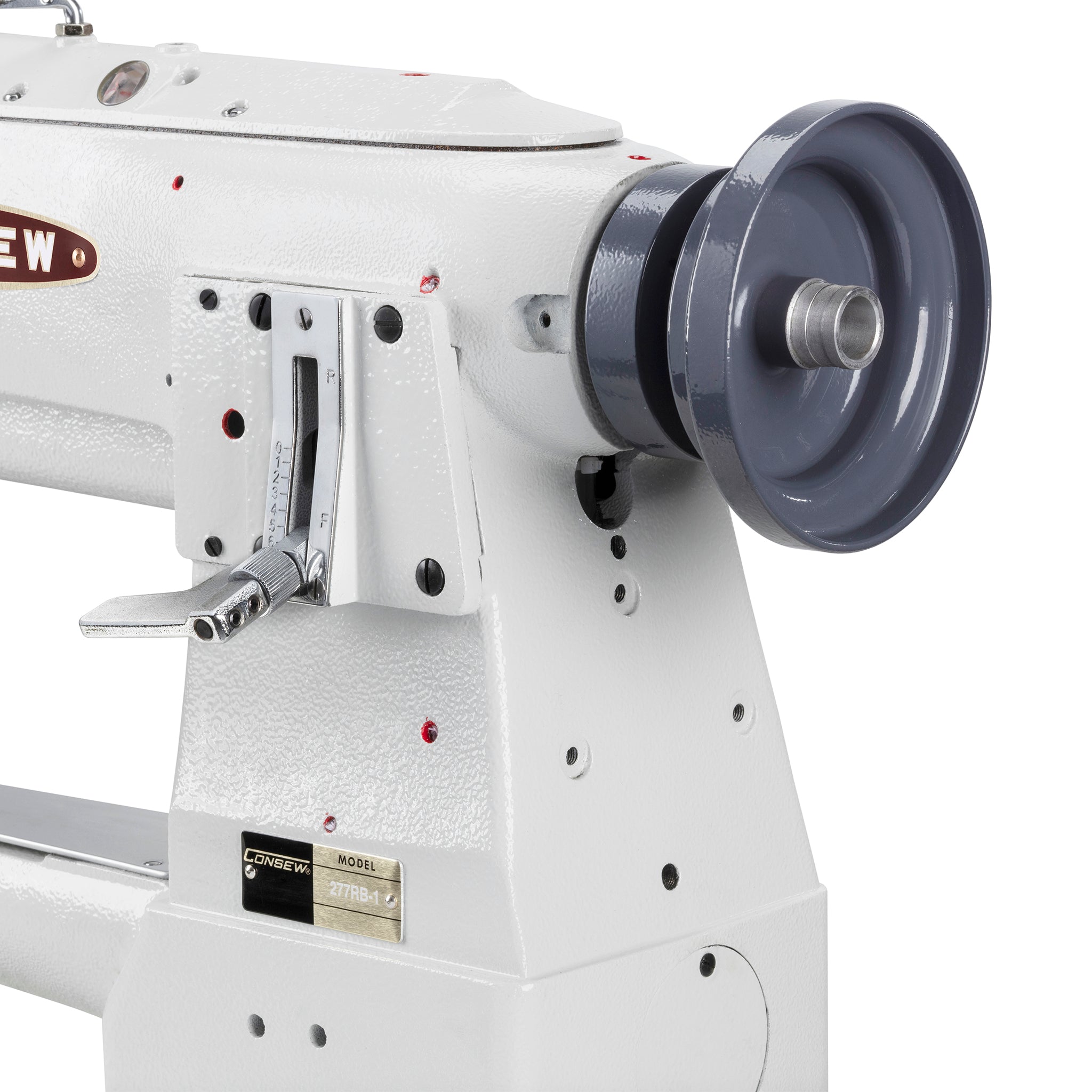

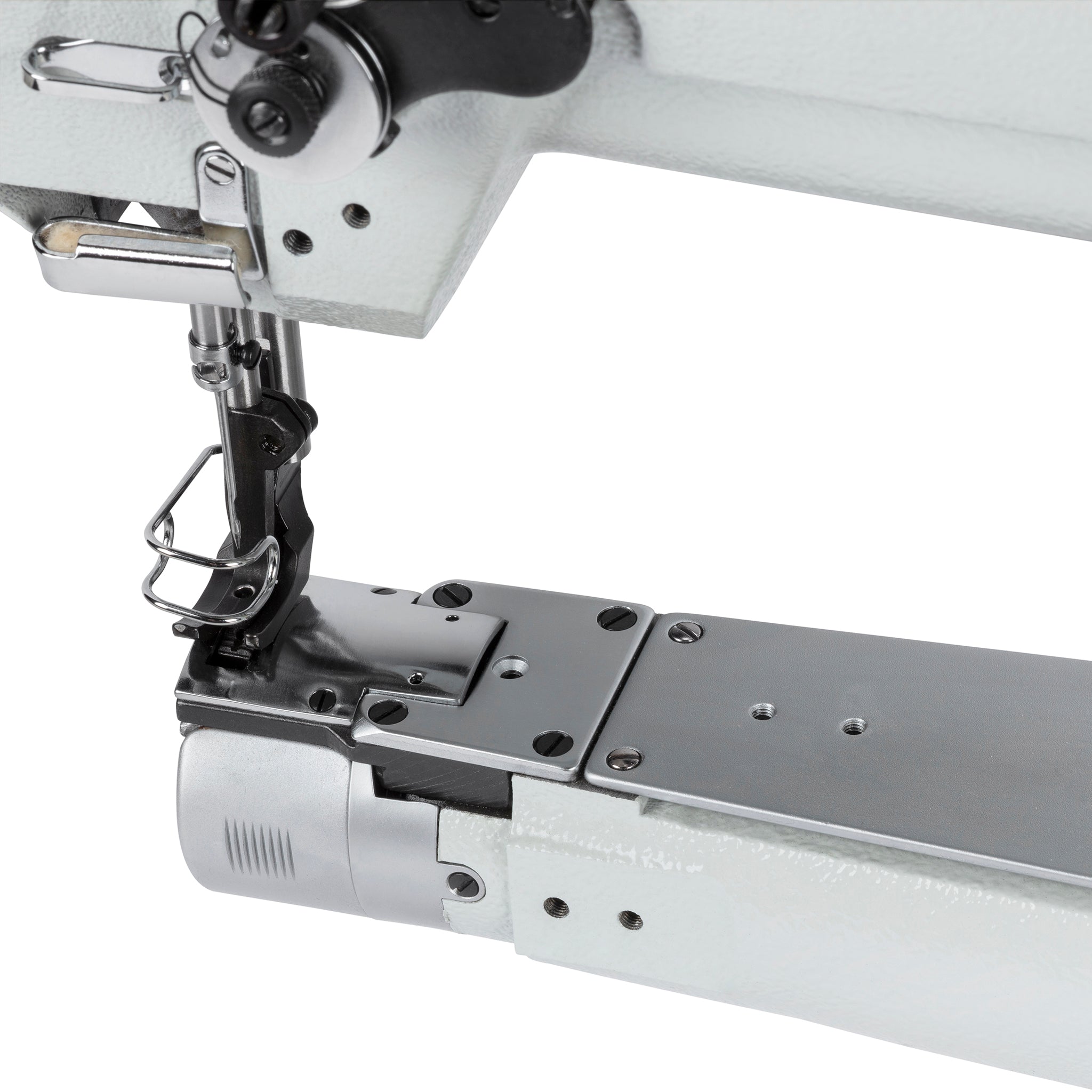

Consew Model 277RB-1

Consew Model 277RB-1


Heavy Duty, Narrow Cylinder Arm, Single Needle, Drop Feed, Needle Feed, Coumpound Feed, Alternating Presser Feet, Lockstitch Machine

With: Centra-Lube Semi-Automatic Lubrication System, Horizontal Axis Rotary Hook, Reverse Feed, Large Hook Big Bobbin Available: Model 277RB


  • For sewing light to heavy-weight fabrics, leather, vinyl, upholstery, synthetics, canvas and various coated and laminated materials.
  • Especially designed for products with narrow openings.
  • For stitching tubular and curved work.
  • Suitable for sewing such products as hats, caps, shoes, sandals, slippers, tarpaulins, covers, sails, tents, awnings, umbrellas, bags, luggage, handbags, travelware accessories, wearing apparel, etc.
  • Tape binding — Models 277RFS-3 & 277RBFS-3

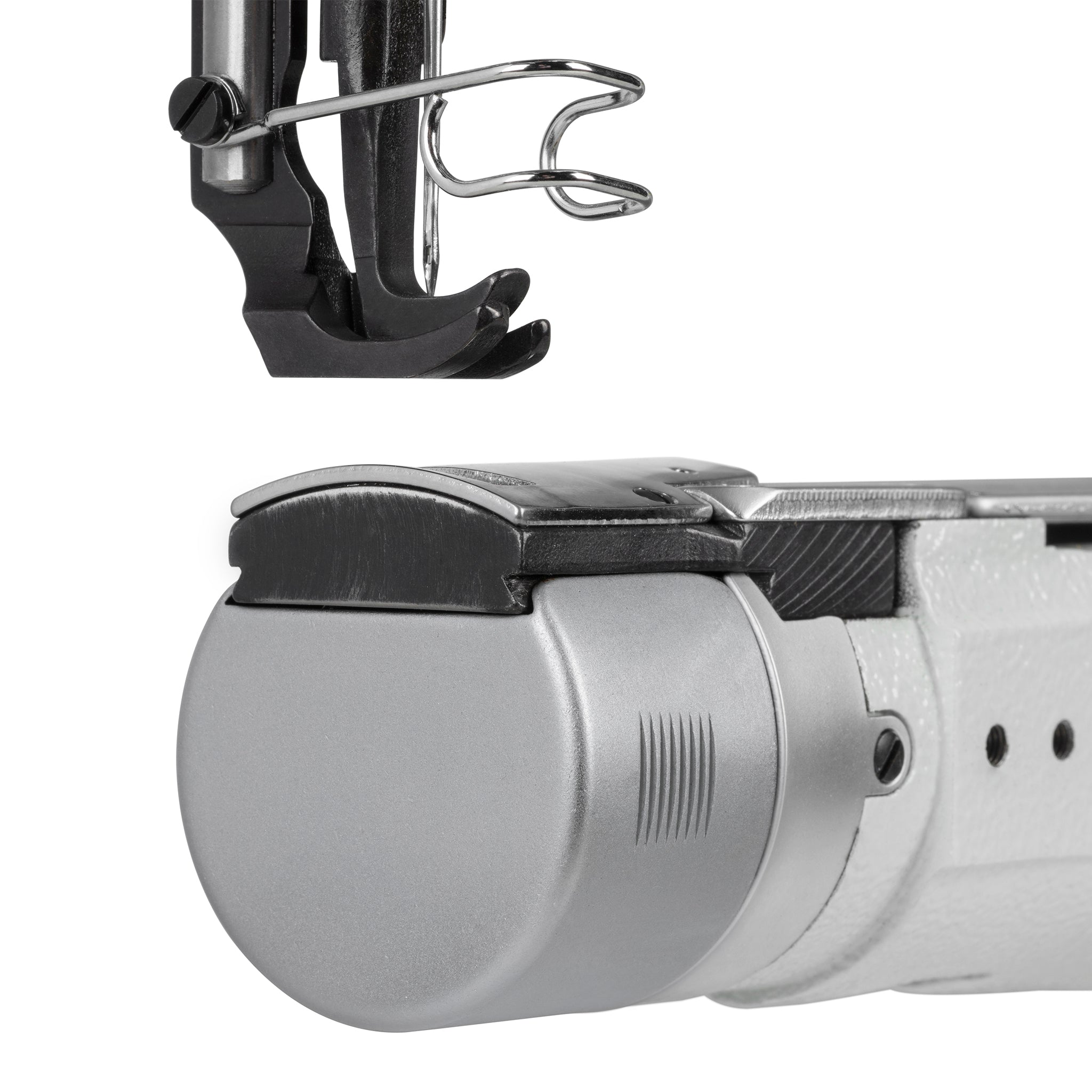

  • Narrow cylinder arm — 46 mm diameter (Models 277R-3, / 277RFS-3)

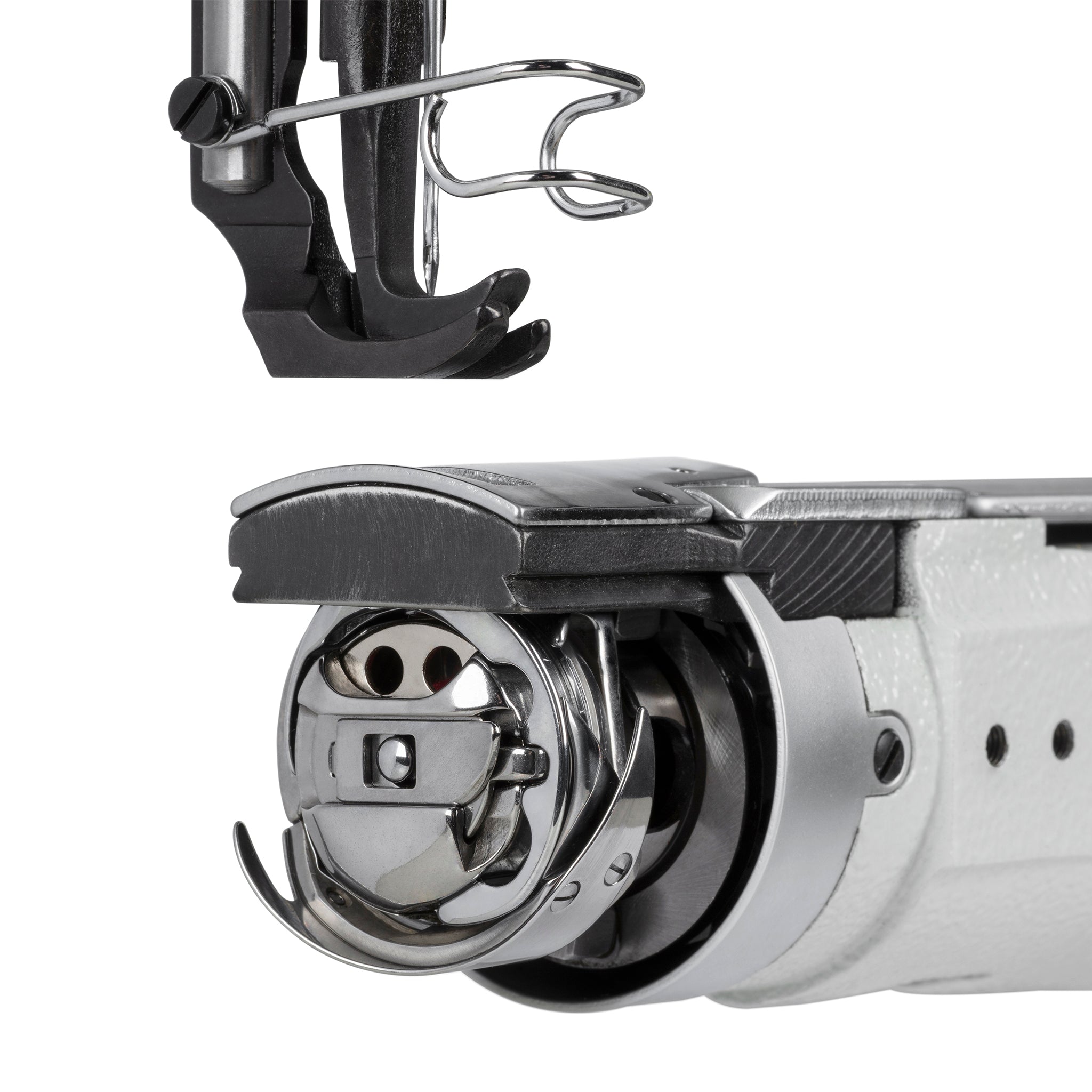

  • Horizontal axis rotary hook
  • Large bobbin available (Models 277RB-1 / 277RBFS-3)

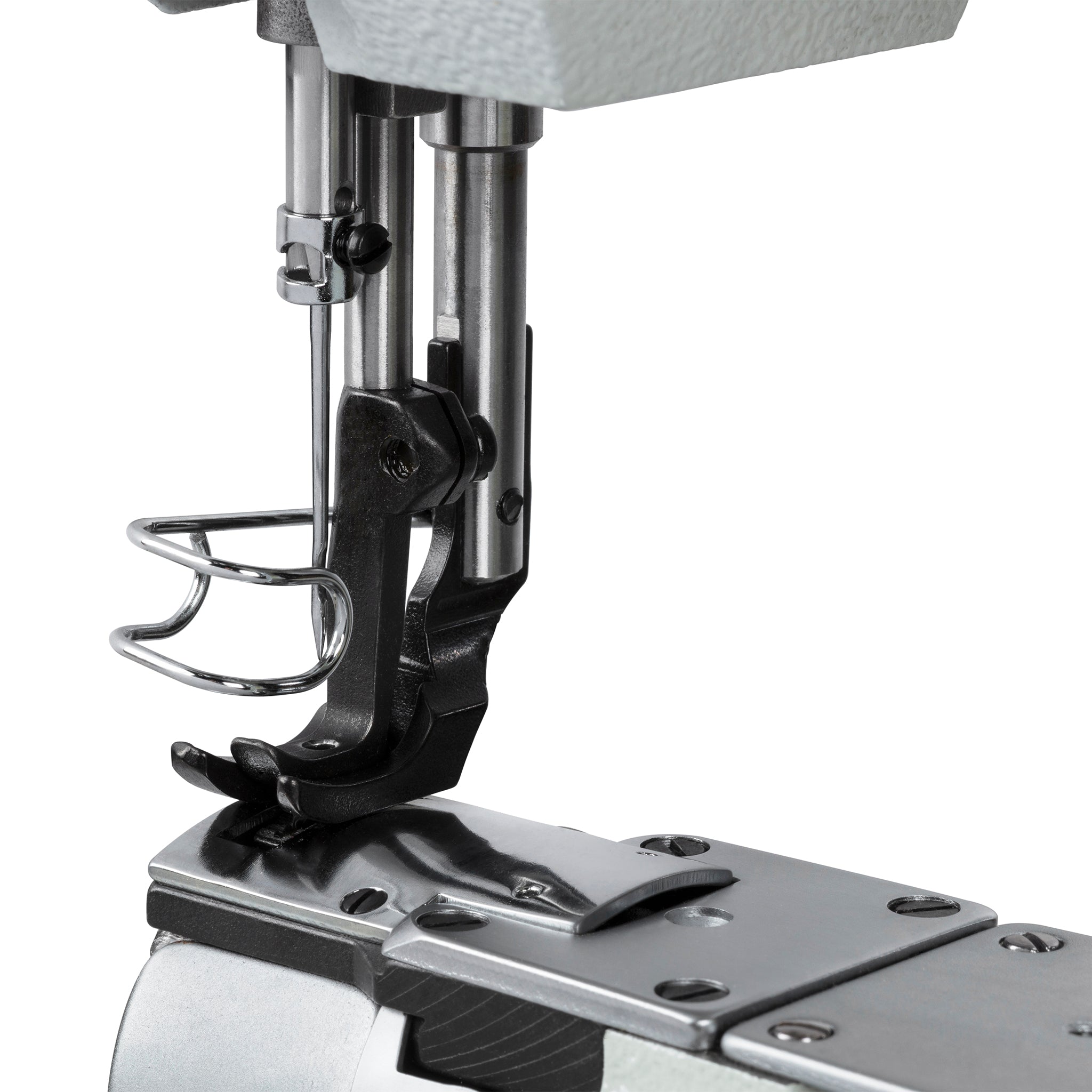

  • Compound feed, walking foot mechanism assures even feeding of several plies or slippery material
  • Simple adjustment permits the raising and lowering of center foot which allows for sewing of different thicknesses of materials


Standard or Full Function Standard Functions
Needle 135 x 17
Workspace Standard Workspace
Cylinder Diameter 1 13/16" Dia. (46o/)
Feeding Mechanism Walking Foot
Work Space 10 5/32" x 4 11/32" (258mm x 110mm)
Stitch Length 4.2 s.p.i. 15/64" (6mm)
Presser Lift Hand 5/16" (8mm) - Foot 1/2" (13mm)
Number of Needles 1 (Single)
Needle Bar Stroke 1 5/16" (33.2mm)
Bobbin 18034 M
Speed, Max (S.P.M.) 2200
