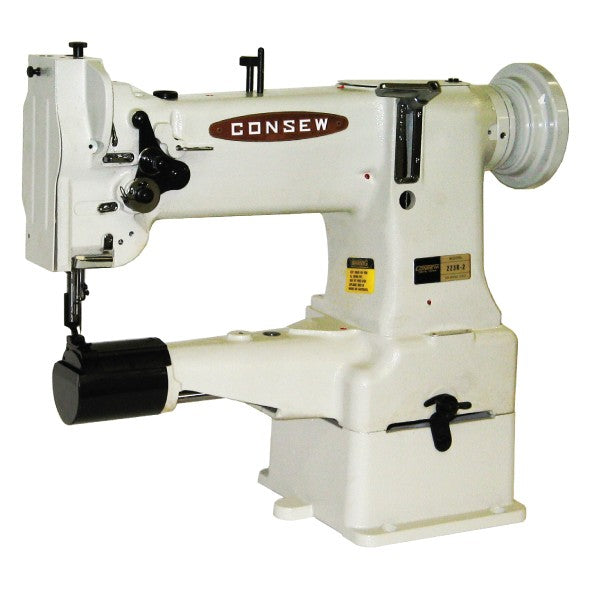

Consew Model 223R-2

223R-2
Consew Model 223R-2

Overview

High Speed, Cylinder Arm, Single Needle, Drop Feed Needle Feed, Lockstich Machine

With: Vertical Axis Rotary Hook, High Lift, Reverse Feed, Safety Clutch

Applications

  • For sewing medium to medium-heavy weight fabrics, leather, canvas, vinyl, synthetics and various laminated and coated materials
  • Designed for stitching tubular and curved work
  • Suitable for sewing such products as caps, cushions, boots, shoes, auto, boat and furniture upholstery, boat covers, sails, awnings, tents, light tarpaulins, camping equipment, luggage, travelware accessories, wearing apparel, coats, etc.

Features

  • High lift
  • Vertical axis rotary hook
  • Cylinder arm
  • Stitches per minute - 3000*
  • Reverse stitching
  • Safety clutch prevents the hook from being damaged
  • Compound feed assures even feeding of several plies or slippery material

ADDITIONAL INFORMATION

Specifications

Number of Needles 1 (Single)
Feeding Mechanism Needle Feed
Workspace Standard Workspace
Standard or Full Function Standard Functions
Speed, Max (S.P.M.) 3000
Clearance Under Presser Foot 11/32" (8.5mm)
Stitch Length 5 s.p.i. (4.5mm)
Work Space 10" (258mm)
Needle 135 x 17
Bobbin Pre-Wound G
Bed Size 2 9/16" dia x 10 9/16" (65mm dia x 268mm)
Stitch Type 301
Needle Bar Stroke 1 5/16" (33mm)
Hook 13086
