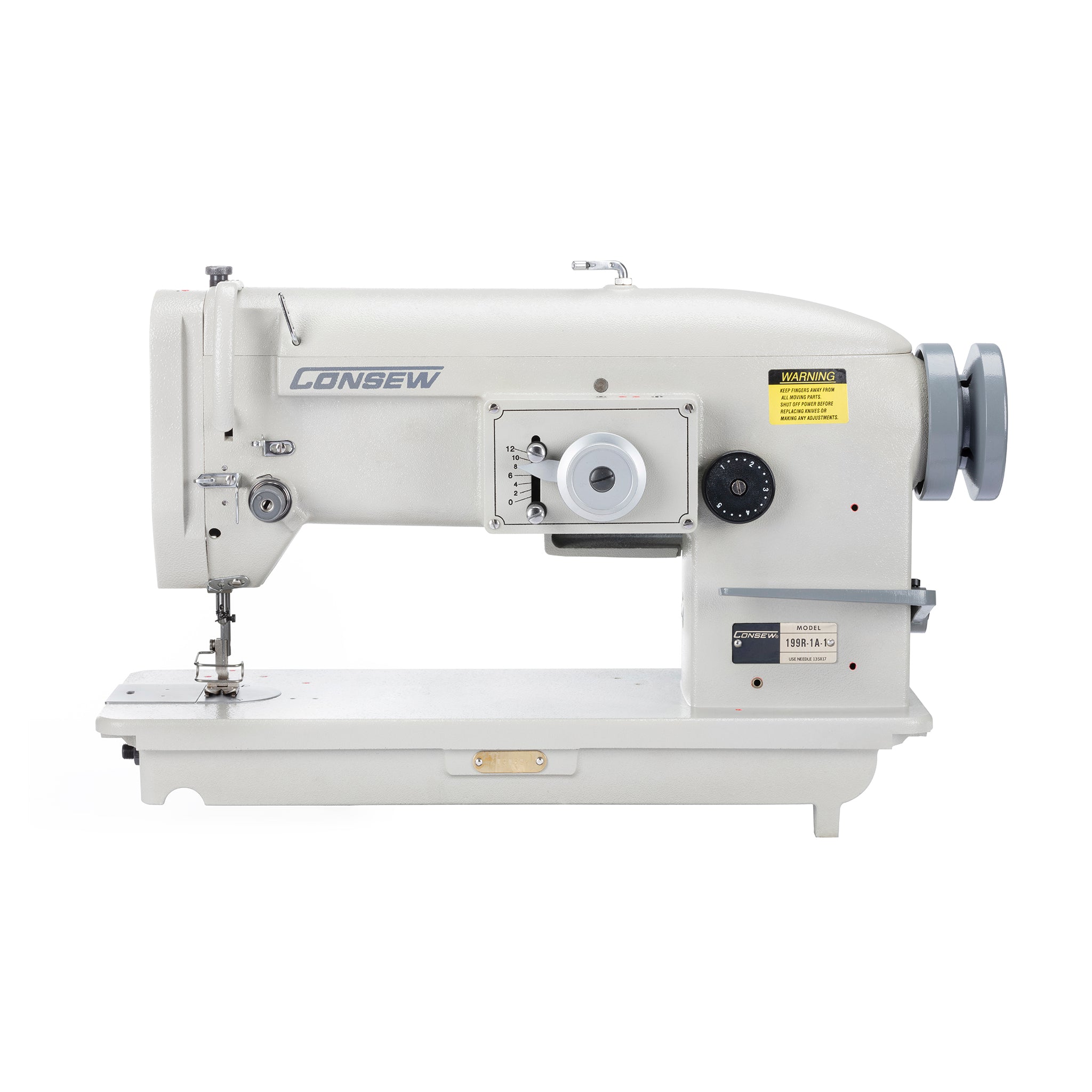

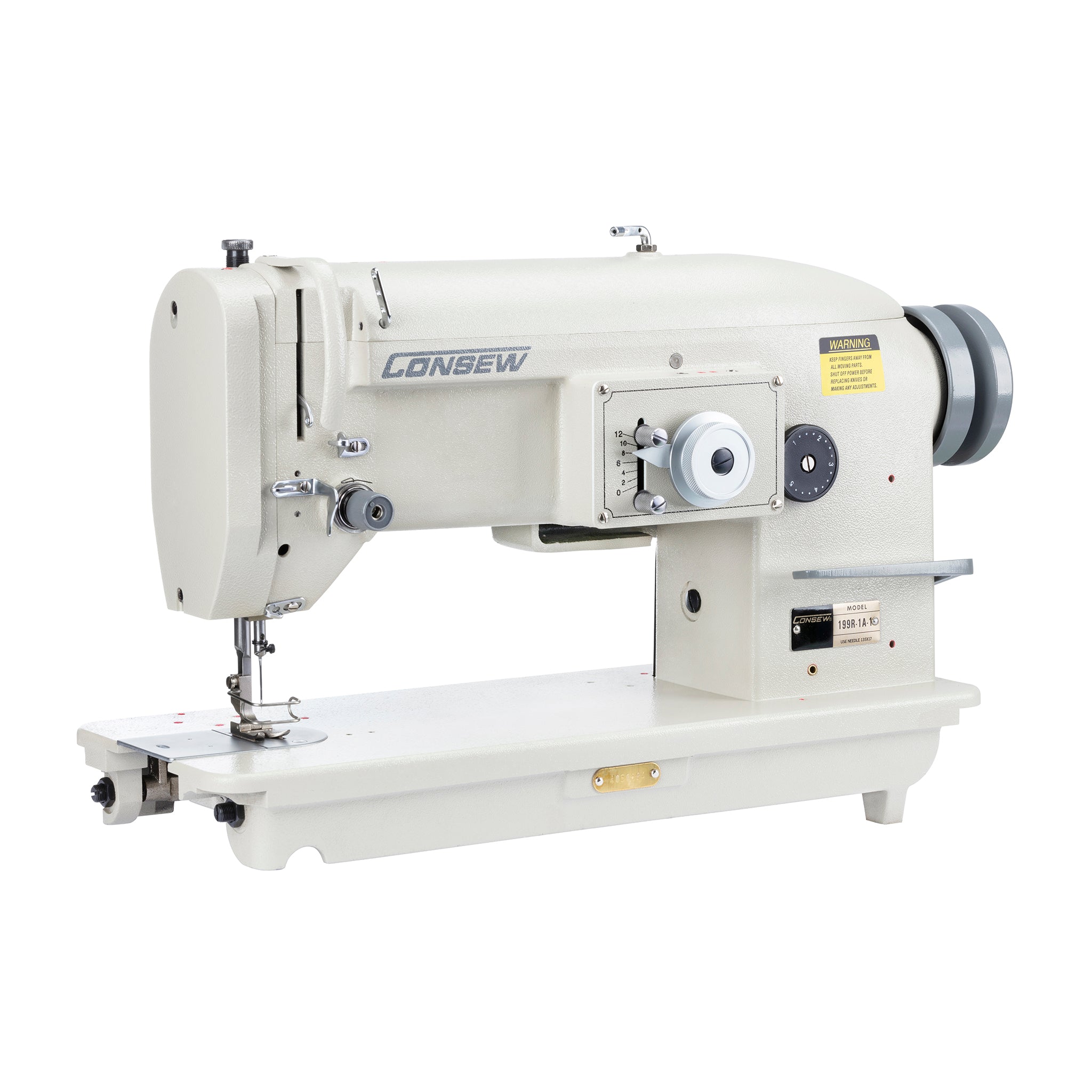

Consew Model 199R-1A-1

199R-1A-1

Overview

Single Needle, Drop Feed, Zig-Zag, Lockstitch Machine

With: Horizontal Axis Transverse Rotary Hook, Reverse Feed, Combination Zig-Zag and Straight Stitcher





APPLICATIONS

  • Used for a wide range of products and operations such as edge sewing, patch sewing, attaching and abutting work, applique work and binding on such materials as leather, vinyl, canvas, cloth, lace and similar materials.
  • Federal stitch 304

Features

  • Horizontal axis transverse rotary hook
  • Maximum width of zig-zag: 3/8" (9.5mm)
  • Straight stitcher when zig-zag is set to 'O' mm
  • Long arm with 10" free space between needle and arm (all 18 7/8" bed models)

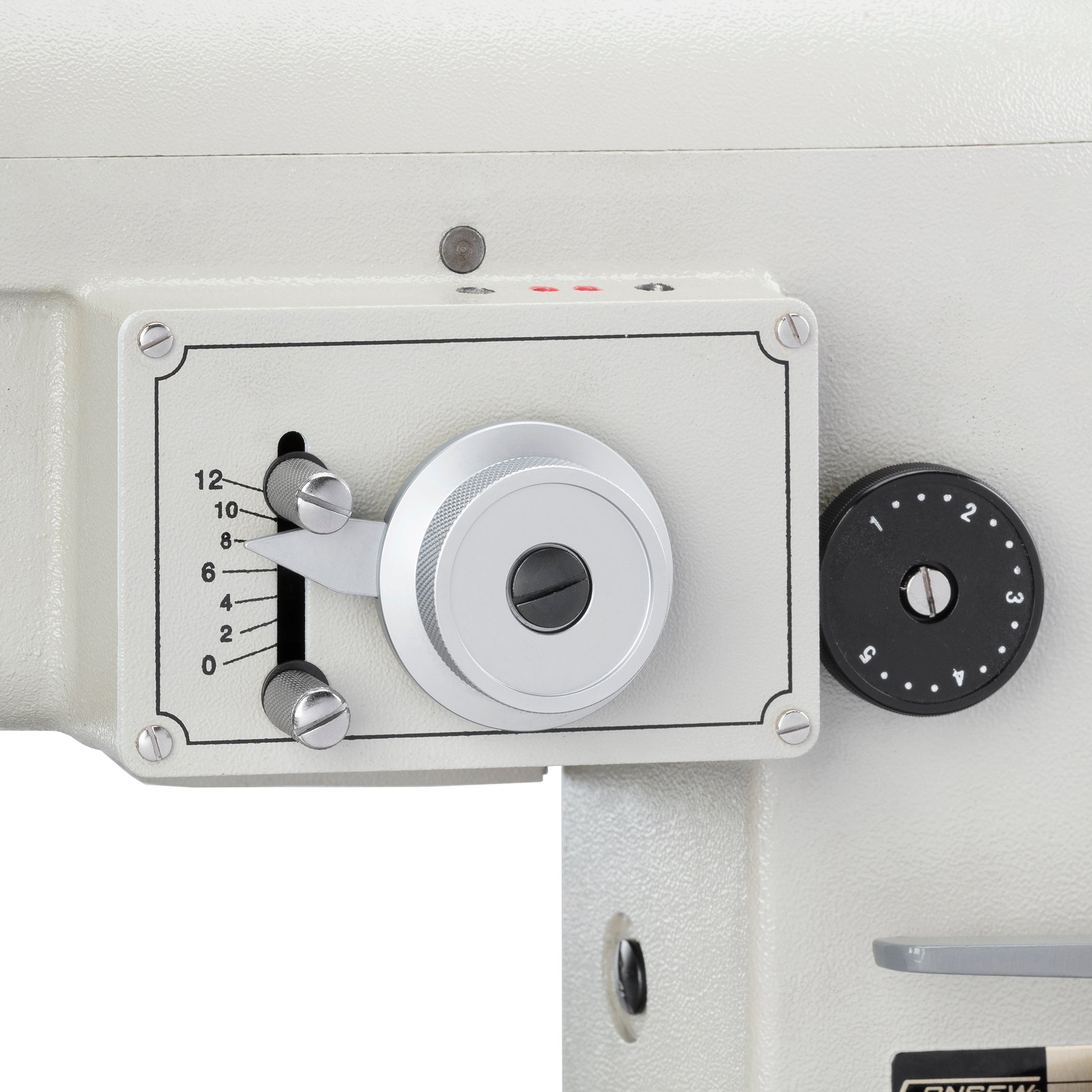

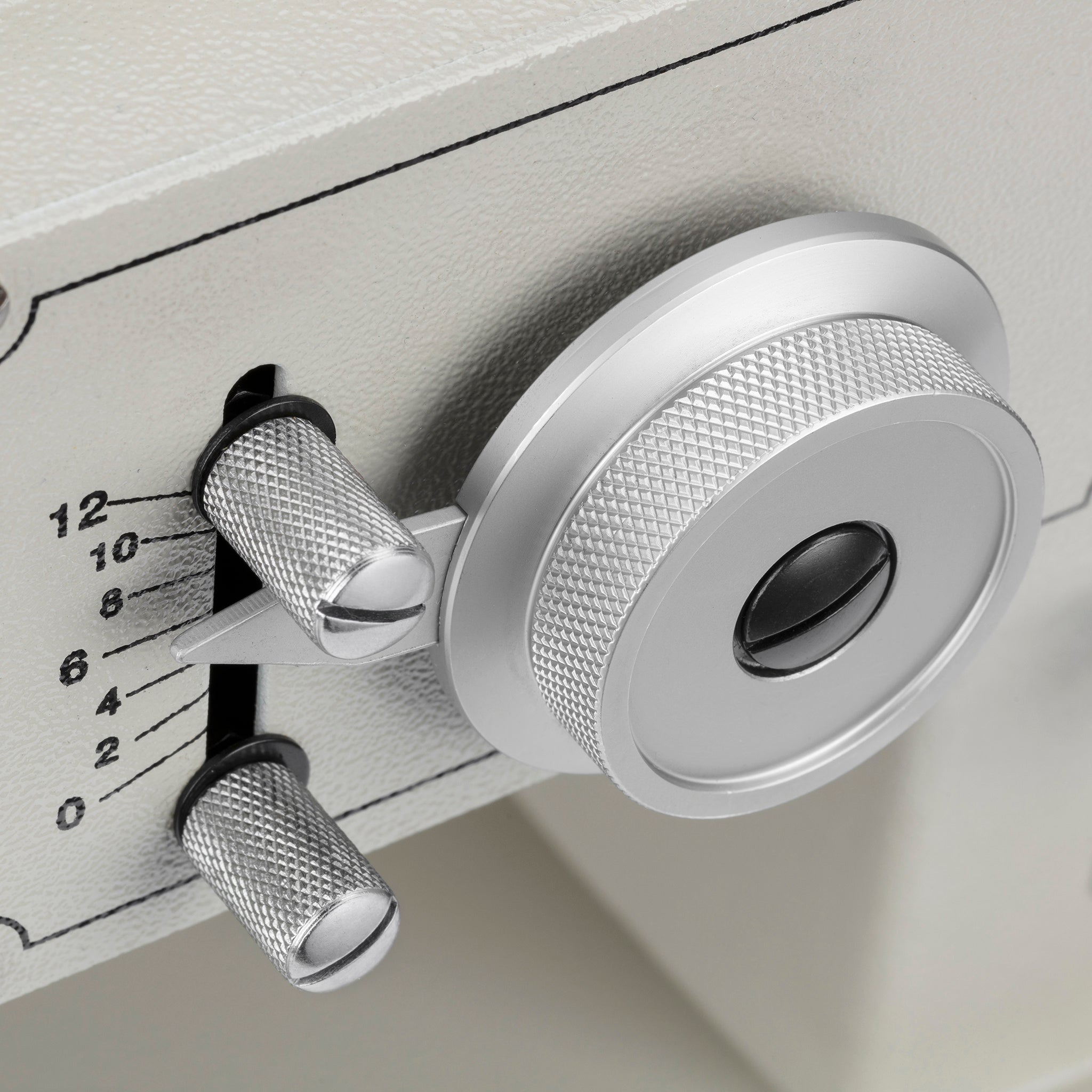

  • Locking zig-zag width regulator
  • Reverse stitching
  • Optional: Interchangable between 1A, 2A & 3A stitches; Additional parts required (not included)
  • VERSIONS (see picture of stitch patterns):
    199R-1A-1 • 1 Stitch Zig-Zag (304)
    199R-2A-1 • 2 Stitch Zig-Zag (308)
    199R-3A-1 • 3 Stitch Zig-Zag

ADDITIONAL INFORMATION



Specifications

Number of Needles 1 (Single)
Feeding Mechanism Needle Feed
Workspace Standard Workspace
Standard or Full Function Standard Functions
Speed, Max (S.P.M.) Zig-Zag 3000
Straight 3200
Clearence Under Presser Foot 15/64" (6mm)
Stitch Length 5 s.p.i. (5mm)
Work Space 10" (258mm)
Needle 16 x 95
Bobbin Metal B75
Pre-wound L
Bed Size 7 x 18 7/8" (178mm x 480mm)
Needle Bar Stroke 1 11/32" (34mm)
Hook B-70
Zig-Zag Stitch Width 3/8" (9.5mm)
